M-Class Mark II

Most Affordable Industrial Printer

The M-Class is a compact, industrial-strength printer that offers outstanding value with a broad range of features.  The smaller footprint is ideal when users need the power of industrial printers but must consider space limitations.  The M-Class has proven to be the perfect solution for warehouse, healthcare, logistics and retail applications. The modular design of the M-Class makes maintenance and part replacement easy, and the flexible design allows for a variety of options to be upgraded in the field.

Specifications at-a-glance:
- Direct thermal, thermal transfer (optional)
- 4.25” [108mm] maximum print width
- 203 dpi [8 dots/mm], 300 dpi [12 dots/mm] optional resolution
- 10 ips [254 mm/s] maximum print speed
Serial, parallel, USB, LAN (optional), wireless 802.11g (optional)

I-Class Mark II

We made the best better

Honeywell’s I-Class revolutionized the barcode printer industry with its award winning modular design, field installable options and rugged reliability.  For the past several years, re-sellers have named the I-Class the “best channel product” in some of the industry’s largest third-party surveys.  Now they have raised the bar even higher, with the redesigned I-Class Mark II.

Specifications at-a-glance:
- Direct thermal, thermal transfer (optional)
- 4.16” [105.7 mm] maximum print width
- 203 dpi [8 dots/mm], 300 dpi [12 dots/mm], 600 dpi [24 dots/mm] optional resolution
- 12 ips [304 mm/s] maximum print speed
- Ethernet wired LAN 10/100, W-LAN with WPA2 security protocol, 2 USB Host Ports and SDIO, GPIO interface card

H-Class

The Industrial Work Horse

The H-Class is a rugged and versatile printer that offers one of the most feature rich solutions for dynamic enterprise applications and is twice as fast as other printers in its class.  The H-Class is ideal for high volume label printing in manufacturing, warehouse, transportation, and high resolution labeling.  H-Class reduces the total cost of ownership with its gear driven design to provide rugged and reliable performance for 24X7 mission critical services.

Specifications at-a-glance:
- Direct thermal, thermal transfer (optional)
- 8.52” [216.4mm] maximum print width
- 12 ips [304 mm/s] maximum print speed
- 203 dpi [8 dots/mm], 300 dpi [12 dots/mm] optional resolution
- Serial, parallel, USB, Ethernet wired LAN, wireless 802.11b/g (optional)

MP Compact4 & Nova

MP Compact4 Mark II
The Compact4 Mark II is a powerful response to desktop thermal printing requirements, and ideal for on-demand printing, especially where space is limited. The printer is ideal at the front desk of a hospital or in the box office of a movie theatre. Able to deliver continuous operation, the Compact4 is the printer of choice whenever ease of use, reliability and high performance are a must.
MP Nova
The Nova series is for customers who need faster speed, high capacity label rolls, and thermal transfer as an option. These printers are the most compact printers in their class. Featuring all-metal casing, they are tough enough for harsh industrial environments, yet quiet enough for office use.

Specifications at-a-glance:
- Direct thermal, thermal transfer (optional for Nova)
- 203 dpi [8 dots/mm], 300 dpi [12 dots/mm] optional resolution
- 10 ips [254 mm/s] maximum print speed
- 6.6" [168mm] maximum print width
- Serial, USB, LAN, wireless 802.11b/g with WPA2 security protocol (optional)
- PL-Z, PL-I, and PL-B emulations on the DPL version of MP Compact4 Mark II

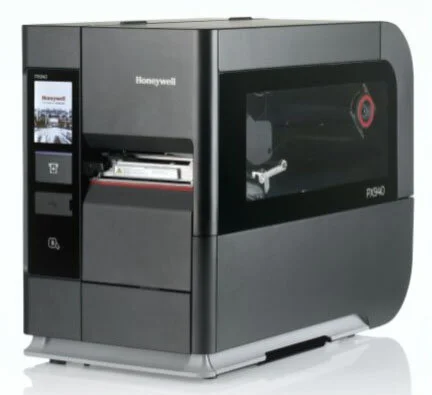

PX940

I-Class Mark III
